Manual Discharge Capacitor Duble Side Inverter Multi Head Spot Welding Machine
Product Introduction
The multi head spot welding machine is working on the 380V/50Hz three-phase AC power supply. By the three-phase rectifier, inverter technology and the feedback control system, to control the welding heat, pre-press time, the maintenance time and cease time, achieving the welding requirements. The welding machine is widely used in automobile, home appliances, electronic instrumentation, aerospace and other projection welding process industry.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. Stable machine structure upside and downside of electrodes apply the pressure mode with assistant stroke. The welding efficiency is much higher.
2. The transformer of welding machine adopts the special resistance welding machine, the silicon steel slice is featured of high magnetic: the inner water- cooled by force; stronger power and high duty ratio.
3. Controlled by micro-computer and can saved at most 16 sets of welding settings, which is quite convenient for different kinds of welding sheets.
4. Widely used in aerospace, automobile and automobile parts manufacturing, new energy and power battery and other special areas of high quality welding requirements.
Major Structure
Electric Circuit
Power incoming line: the user must connect the power line from the power switch to the welding machine body,and wiring board A and B connect the wiring bolts ; The grounding wire is safely connected to the grounding bolt on the lower left side of the rear of the welding machine body, as shown in the following figure.

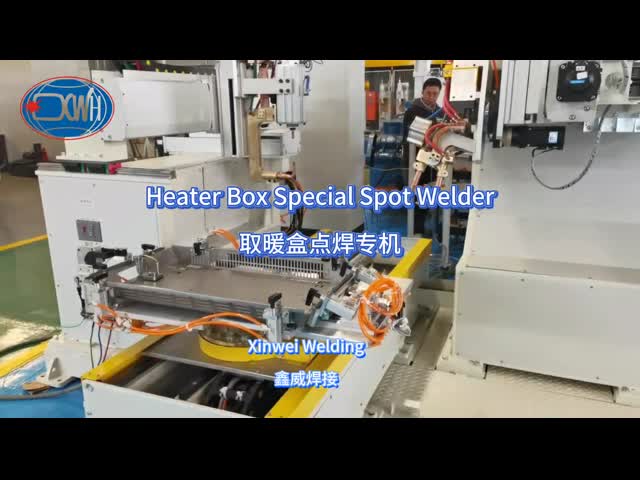

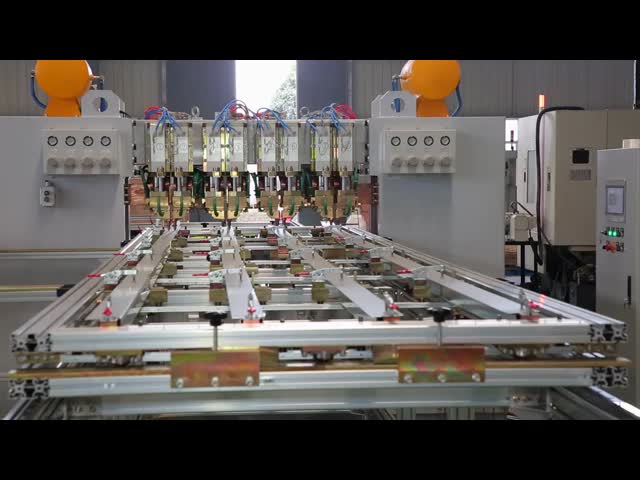

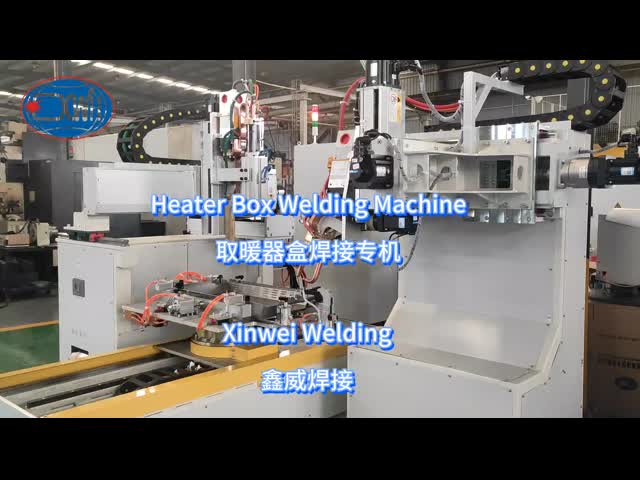

Reference Pictures
Application
